Non-contact forehead thermometer program

2020-03-18     By: H.C.C.

Non-contact forehead temperature gun solution compatible with universal male models and various infrared sensors


PCB assembly estimated cost: 150 CNY


 An Introduction


Provide software, hardware, technical support and services including PCBA.


 application solution


The main control circuit of non-contact thermometer is divided into two types: analog circuit and digital circuit. The processing method of analog circuit cannot be guaranteed. It is generally used in industrial measurement. Digital circuit improves the A / D converter by amplifying the signal. Resolution and accuracy can reach ± 0.1 ℃, which is more suitable for the measurement of human temperature.

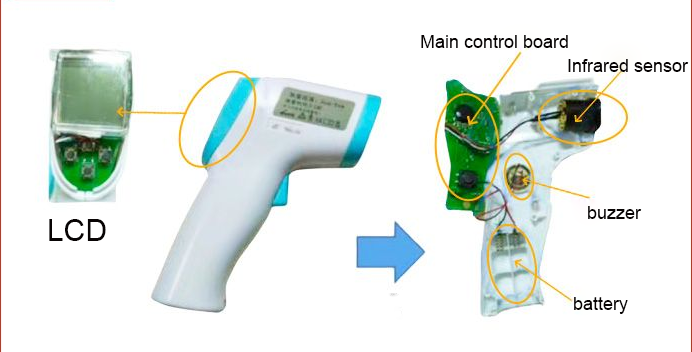

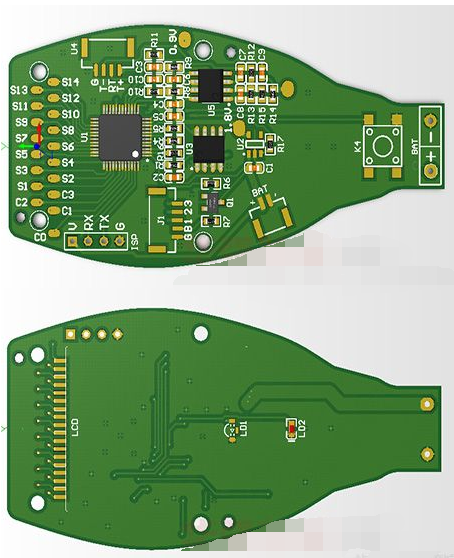

Structure


Application

Measure body temperature based on the infrared radiation energy emitted by the human body


Features

Compatible with general-purpose male models and infrared sensors. The final module is grounded and supported by the Huaqiu development team. This module supports and is compatible with current general-purpose sensor solutions.


System block diagram

Core devices


BOM material


Product model                           Brand               Product description                   Quantity


TLV70018DDCR                               TI                  IC REG LDO 1.8V 0.2A 5SOT                  1

GS8592-SR                                   Gainsil               4.5MHZ -1.8V ~ 5.5V                           1

060CC0603KRX5R5BB106              Yageo               0603 10uF ± 10% 6.3V X5R                  1

GRM188R60J226MEA0D              Murata               0603 22uF ± 20% 6.3V X5R                  1

CC0603KRX7R9BB104                   Yageo                0603 100nF ± 10% 50V X7R                 5

CL10B103JB8NNNC                     Samsung             0603 10nF ± 5% 50V X7R                    3

ORH-W46                                    GOrient               0603 (H = 0.4mm) white highlight

                                                                               VR = 5V IF = 30mA VF = 2.8V

                                                                                ~ 3.2V PD = 120mW                         2

SS8050                                           SK                    NPN Ic = 1.5A Vceo = 25V hfe =

                                                                             200 ~ 350 fT = 120MHz P = 350mW     1

03RS-03K331JT                             FH                     chip resistor 0603 330Ω ± 5% 1 /

                                                                               16W ± 100ppm / ° C                           2

0603SAF1002T5E                    ROYAL OHM             chip resistor 0603 10KΩ ± 1% 1 /

                                                                               10W ± 100ppm / ° C                           2

RTT031001FTP                          RALEC                    SMD resistor 0603 1KΩ ± 1% 1 /

                                                                                10W ± 100ppm / ° C                           1

RC0603JR-0720RL                     Yageo                    chip resistor 0603 20Ω ± 5% 1 /

                                                                               10W ± 100ppm / ° C                            1

0603WAF1002T5E                    Uniohm                   chip resistor 0603 10KΩ ± 1% 1 /

                                                                                 10W ± 100ppm / ° C                           2

RC0603JR-07100KL                     Yageo                    chip resistor 0603 100KΩ ± 5% 1 /

                                                                                 10W ± 100ppm / ° C                            2

RTT031001FTP                             RALEC                     SMD resistor 0603 1KΩ ± 1% 1 /

                                                                                    10W ± 100ppm / ° C                         2

0603WAF8203T5E                   Uniohm                      chip resistor 0603 820KΩ ± 1% 1 /

                                                                                    10W ± 100ppm / ° C                          1

RC0603FR-07510KL                  Yageo                         chip resistor 0603 510KΩ ± 1% 1 /

                                                                                     10W ± 100ppm / ° C                         1

RC0603JR-07300KL                 Yageo                         chip resistor 0603 300KΩ ± 5% 1 /

                                                                                    10W ± 100ppm / ° C                          1

product name

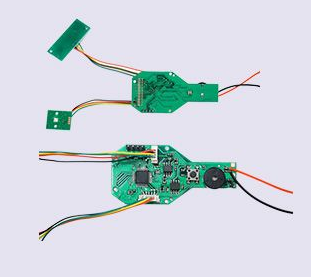

PCBA module compatible with general purpose male models and various infrared sensors

 product description

Measure body temperature based on the infrared radiation energy emitted by the human body. Compatible with general-purpose male models and infrared sensors. The handheld infrared body temperature detector PCBA module does not include infrared sensors. Due to fluctuations in market prices and delivery dates, other issues need to be discussed. The final module landed, supported by the Huaqiu development team. This module supports and is compatible with current universal sensor solutions.
