10.1 inch industrial control Android screen

H101R1W series，an industrial Android touch display intelligent terminal designed for the ARM A53 architecture, equipped with Android 10.0 operating system and a powerful human-machine interaction system with a 10.1 inch full-view LCD and capacitive touch screen. The product has a light,thin and flat appearance, high overall fit and easy installation, and can be used in indoor and semi-outdoor environments.


Home > HMI touch screen > 10.1 inches
Powerful hardware and software configuration, strong compatibility

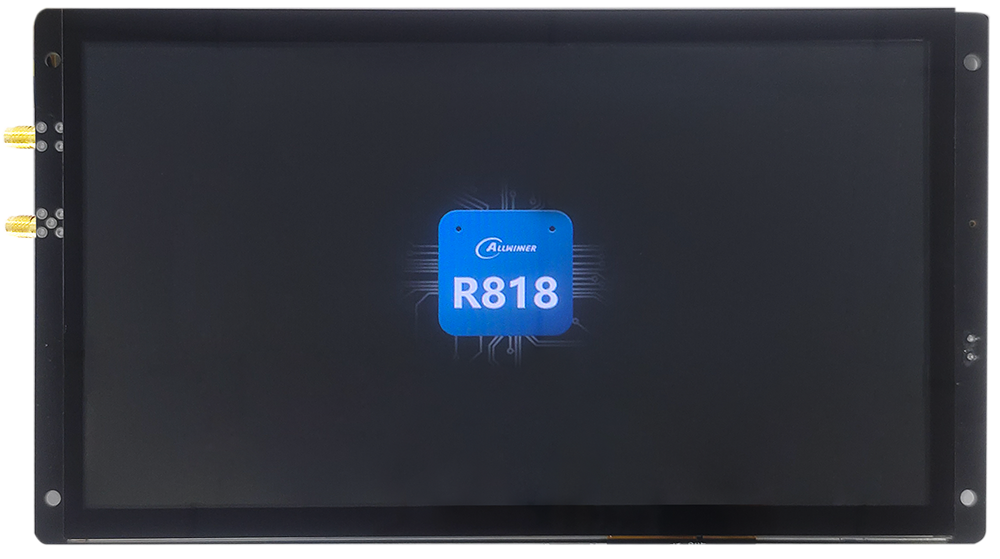

 Equipped with R818/4-core 1.6GHz processor
 Android 10.0 operating system, compatible with 99% of the industry applications, support independent design APK program installation
 Industrial-grade capacitive touch solution, stronger anti-interference, widely used in a variety of complex industrial scenarios.
 Industrial embedded installation design for various industries.
 Passed CE/ROHS certifications and has stable and reliable guarantee.
Powerful hardware and software configuration, strong compatibility

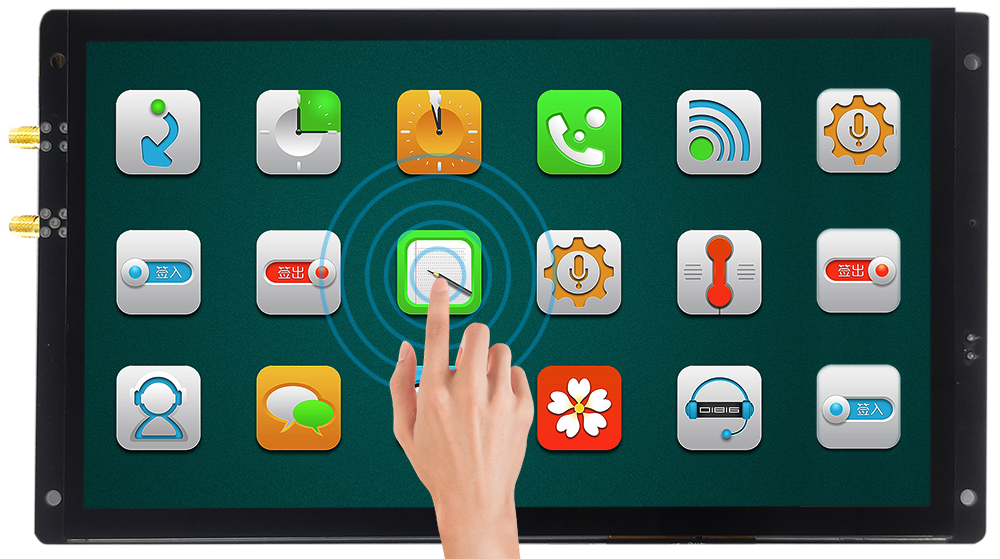

Precise touch, more sensitive
 Industrial-grade capacitive touch solution, stronger anti-interference, widely used in a variety of complex industrial scenarios.
 260,000 true color display, 1024*600 pixels.
 5-point capacitive touch and single-point touch are optional.
 350nit brightness.
 10.1 size, screen ratio 16:9.
 30000 hours LED backlight lifespan.
Precise touch, more sensitive
Multiple different serial port communication
 Supports RS232, RS485, CAN and other communication interfaces for exchanging information with external devices.
 Support WIFI/4G/Ethernet and other networking methods to enable remote data transmission, upgrade and update.
 Support 1080P language calls and 2 million dual camera.
 Support voice and video play.
 Multiple interfaces to meet the needs of various devices USB/MINI USB/TF/SIM card, etc.
Multiple different serial port communication

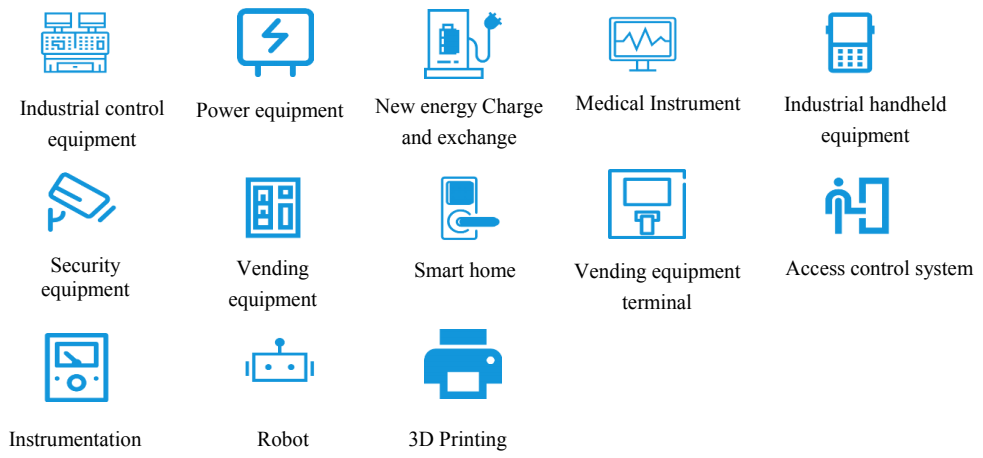

Wide range of applications, suitable for a variety of industry equipment
 Industrial embedded installation design, suitable for various industries.
 System optional Android/linux.
 Provide shell frame customization.
 Touch screen can be customized according to requirements.
Wide range of applications, suitable for a variety of industry equipment

Product parameters


Core parametersDataExplain
CPUR8184-core A53 1.6GHz
Operating systemV10.0Android
Running memory1GB2*512MB, DDR4
EMMC8GBEMMC5.1
Touch form5-point capacitor and single-point optional

Operating voltage and

current

12V(Typical value)700mAThe smallest 8V, the largest 24V, recommended 12V 1A The above DC stabilized power supply
Screen parametersDataExplain
Screen size type13.25 inchesScreen ratio 16:9
Resolution1024*600 pixels260,000 colors
Backlight brightness350 nitThe brightness can be adjusted.
Backlight life (hours)30000HrsLED backlight
Perspective (CR>10)Full perspectivePanel type: IPS
Interface parametersDataExplain
InterfaceDefault first interface：RS232

Interface 0，

Default second interface：RS232

Interface 2，

Default first interface:RS485

Interface 3，

Default second interface：RS485
Maximum baud rate 115200
USBHOST*4, OTG*1Supports 2 megapixels if connected to a USB
Audio1 channel mono MIC/dual channel HPO (3.5mm earphone), 2 channels mono SPK (4Rx3W)
TF1 roadThe biggest 64G
Ethernet1 road10/100M Adaptive network interface
WIFI1 roadIEEE 802.11Bb/G/n, 2.4G; *optional*
Blue tooth1 roadV4.0
4th generation ModuleAll Net com*optional*
CAN1 road，CANH, CANL*optional*

Environmental parameters

Project

Working temperature

test parameters

Storage temperature-30 ~ 80℃
Working temperature-20 ~ 70°C
Relative humidity10~90% RH
Reliability parametersEMCClass B，EN55032
ESDLevel 3
